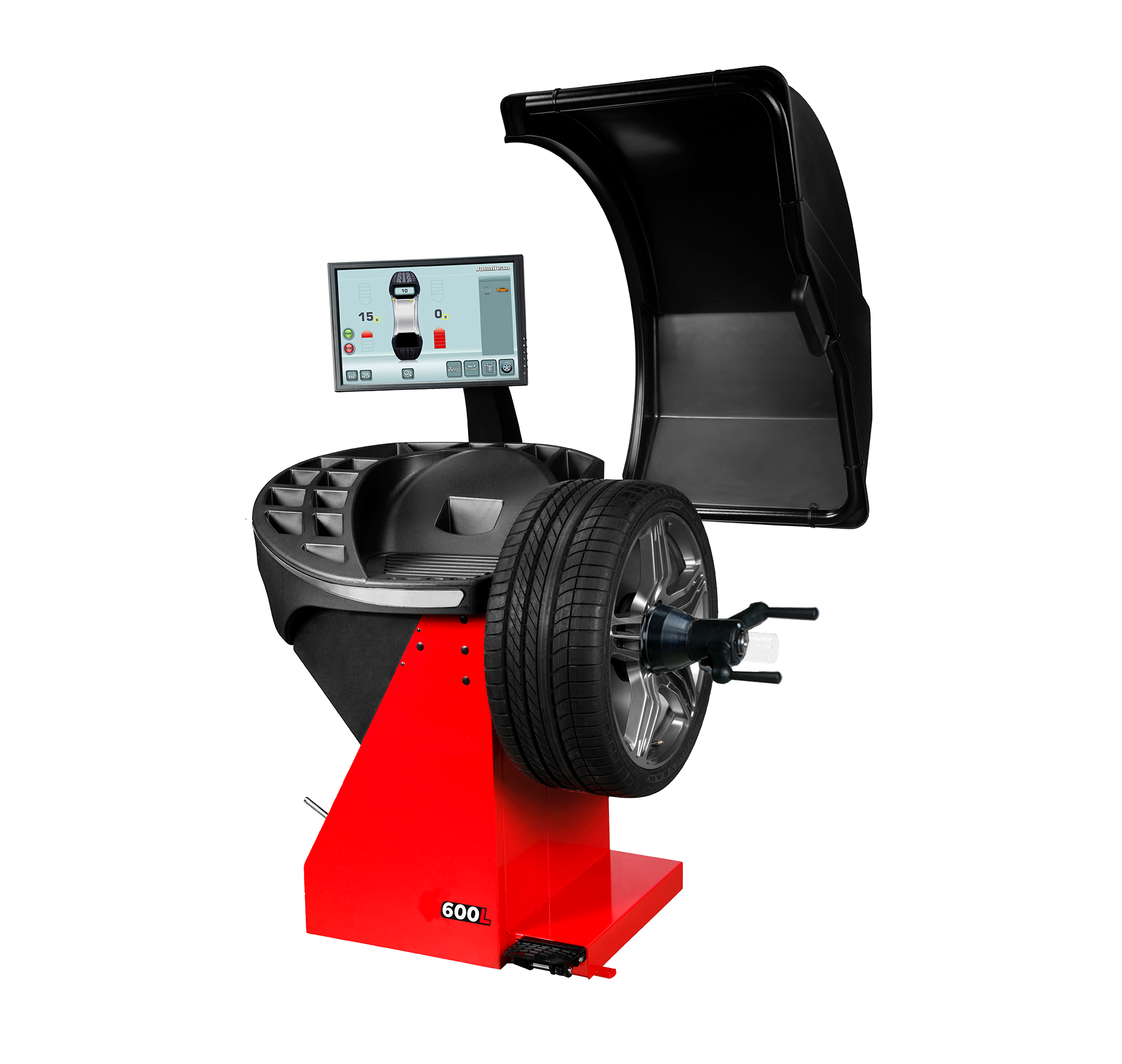

wheel balancer B600L

High-productivity wheel balancer
Touchscreen monitor with graphical user interface GOLD – improved intuitiveness and ergonomics
EasyWeight laser light indicator for fast, accurate and pinpoint placement of adhesive weights on the wheel
Semi-automatic input of offset and rim diameter via 2D SAPE and automatic rim width acquisition via Smart Sonar – fast and easy
Semi-automatic pre-selection of balancing mode via easyAlu
Rim lighting to facilitate rim cleaning and speed up data entry and weight positioning
Imbalance minimisation and optimisation programs
VPM measurement technique for uncompromised accuracy
QuickBal for reduced measurement time:
Short start-stop cycle time: 4.5 seconds (15’’ rim)
New ergonomic weight tray


The B600 series wheel balancing systems are designed for high volume shops. Its intuitive user interface and ergonomic touchscreen reduces complexity and offers short cycle times.

Applic/ation & Features

Benefits of B600L : Touchscreen : Gold touch screen graphical user interface – new, time saving and user-friendly.
Fast and intuitive selection of the ALU modes.
Large digits for the amount of the balance weight and bright indicators for weight position.
19” touch screen monitor
One Touch imbalance Weight Location.
Easy Selection of Units

EasyWeight : Pinpoint indicator light – The accurate, fast and easy solution to position adhesive weight on the wheel.
The pinpoint light allows accurate positioning of the adhesive weight avoiding any misplacement.
The bottom weight location is more convenient to reach for the user.
It increases throughput at high accuracy

Smart Sonar : 30% time saving compared to manual input.
No operator mistakes
No cumbersome callipers

EasyALU : The balancer automatically recognises the weight mode, ALU-P or steel rim.
The easyALU function reduces the set-up time of the wheel set

  • Motorized – Yes
  • Wheel clamping – Quick nut
  • Diametre of shaft – 40 mm
  • Measuring speed – < 200 rpm
  • Balancing accuracy – 1 g
  • Angular resolution – ± 0,35°
  • Lenght of shaft – 225 mm
  • Start/Stop balance time – Check spin – 4.5 s
  • Rim diameter range – 8″ – 32″
  • Offset range – 1″ – 20″
  • Rim width range – 1″ – 20″
  • Max. wheel diameter – 1050 mm
  • Max. wheel weight – 70 kg
  • Input power (VAC) – 230 VAC 1ph 50/60 Hz
  • Dimensions LxWxH – 1313 x 868 x 1834
  • Net weight – 115 kg
Download Specifications

RANBONE-600 L datasheet (cick to download) 2022-1-6
