Simply start measuring run by closing of wheel guard or pressing START key
Optimization, spoke mode with hidden weight function and EASYALU mode
19”color monitor
10 weight compartments with ample space in weight storage and within easy reach of the operator
Perfect solution to optimize the working space
2D Semi Automatic Parameter Entry (SAPE)
Optional accessory: motorcycle adaptor

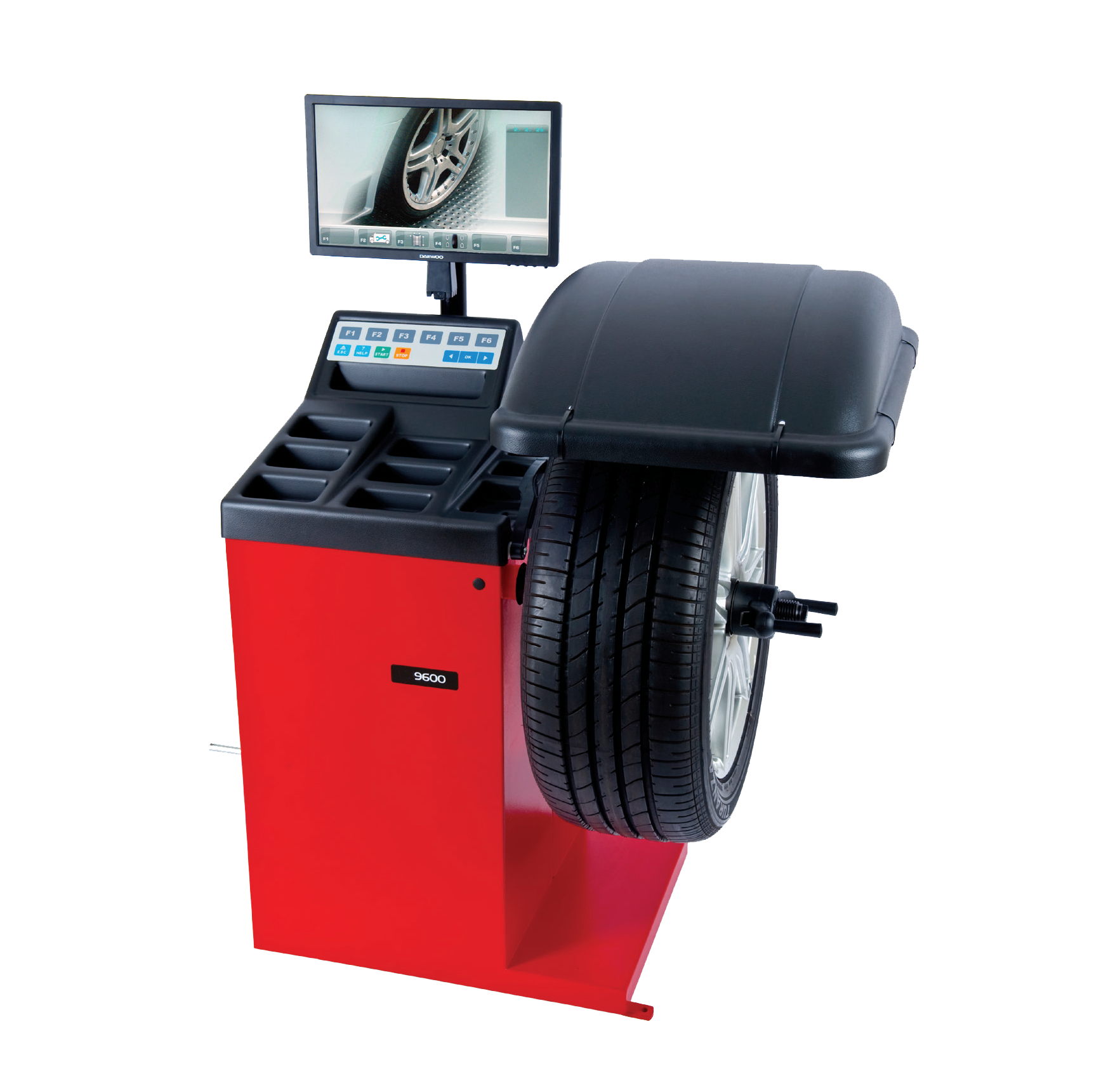

High Performance in Compact Design, The perfect wheel balancer for shops desiring to expand into wheel service and looking for value without compromising balancing features. “RPI” Real Plane Imaging Technology.
| Model | 9600 |
| Resolution | 1g |
| Measuring Speed | 200rpm |
| Measuring Time | 6-10s |
| Rim Width (Dynamic) | 1”-16”(3”-16”) |
| Maximum Wheel Width | 500mm(400mmwithwheelguard) |
| Rim Diameter | 12”-22” |
| Maximum Wheel Diameter | 1,016mm(880mmwithwheelguard) |
| Data Entry | 2DSAPE |
| Maximum Wheel Weight | 65kg |
| Power Supply | 220-240V,1Ph,50/60Hz |
Wheel balancer 9600 Datasheet (cick to download) 2023-01-16
